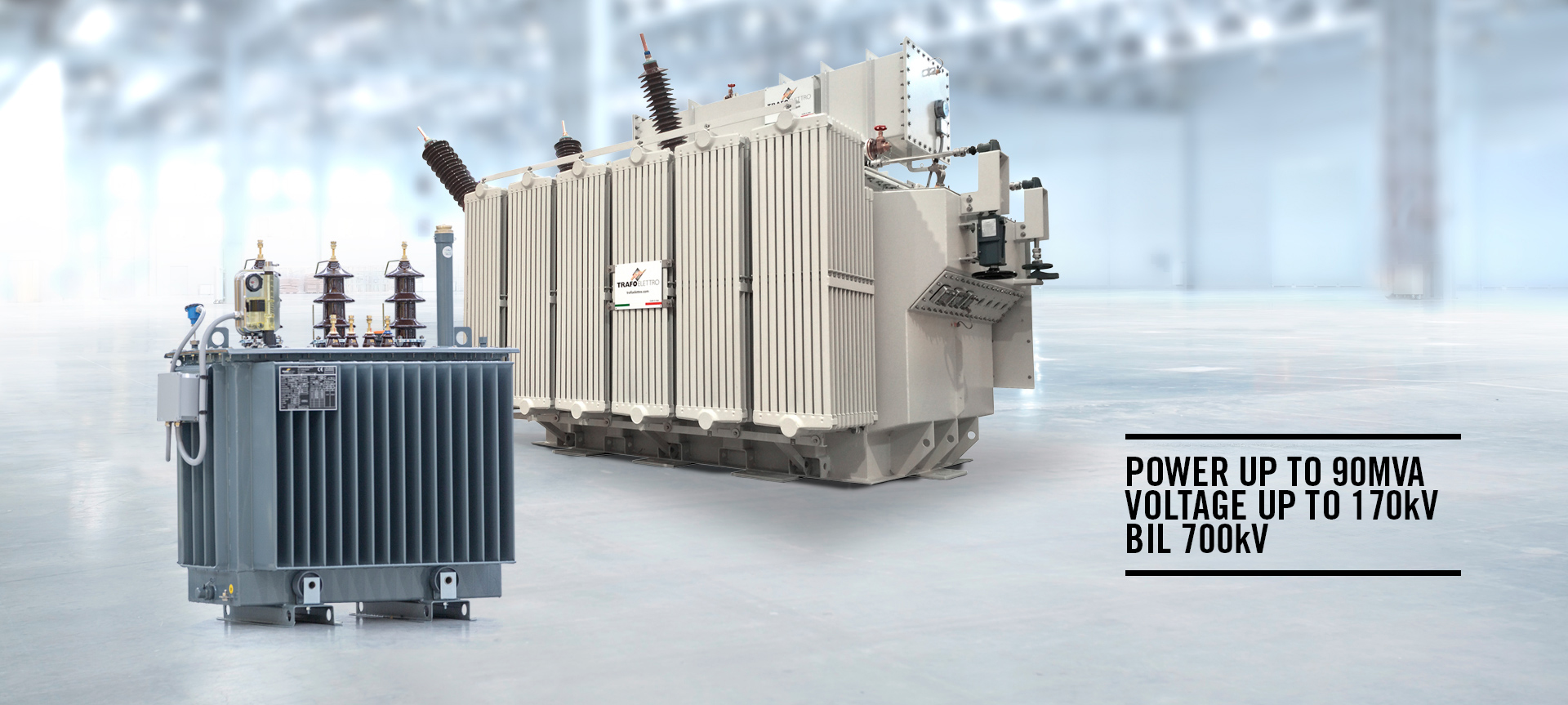

Oil Immersed Transformers
Oil immersed transformers offer a customize and reliable solution for the customer as the typical design allows many configurations and installations.
Thanks to their design, oil immersed transformers are used either for indoor or outdoor installations and in high polluted places.
HERMETIC
WITH CONSERVATOR
OIL IMMERSED CATALOG
ADVANTAGES
SAVING
Designed for easy installation with accessories properly wired and positioned to simplify the installation and maintenance operations in order to reduce the costs.
COMPACT DESIGN
Optimized dimensions and terminals arrangement for critical situation of space.
HIGH ENVIRONMENTAL RESISTANCE
Specific coating tretment and use of stainless steel bolts to withstand the most extreme environmental conditions.
HEAVY DUTY
Special design structure for seismic zones or for using in applications with high level vibrations.
ECO-FRIENDLY
Research and development of the most performing materials combined with an advanced design for high energy efficiency. Safe to use and easy to dispose.
STANDARD ACCESSORIES
HERMETIC
WITH CONSERVATOR
TESTS
ROUTINE TESTS
To be performed according to IEC 60076-11:
- Measurement of winding resistance
- Measurement of voltage ratio
- Checking of phase displacement
- Dielectric routine tests
- Measurement of partial discharges
- Measurement of no-load losses and current
- Measurement of short-circuit impedance and load losses
- Test of accessories
TYPE TESTS
Can be performed:
• Lightning impulse test
• Temperature rise test
• Determination of sound level
SPECIAL TESTS
Can be performed:
• Short-circuit withstand test
